Description
Product Video
Features
• 2 laser lines – horizontal & vertical – exact 90° angle
• Beam direction/fan angle – vertical / >180°, horizontal / >180°
• Self-levelling range 4°
• Range up to 25m* >80m with detector
• Levelling accuracy ± 1mm @ 5m
• Laser: 2 lines
• Operating time: 3 x AA 1.5v – operating time 13h
• Robust spray proof / dust protected IP54
What’s included:

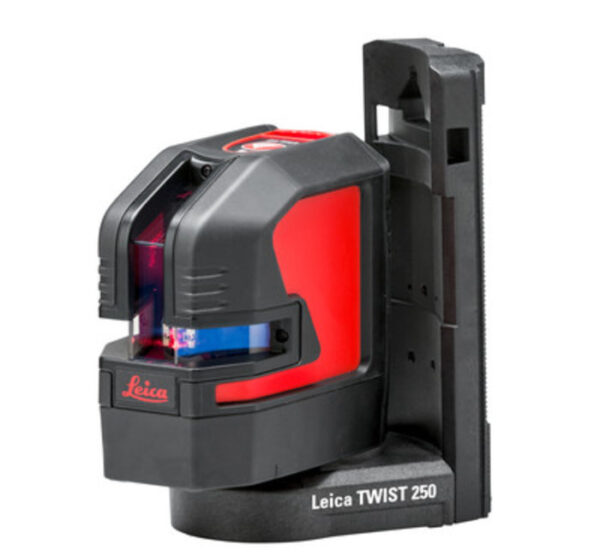

Lino L2 ALK line laser
Leica TWIST 250 adapter
Alkaline battery tray
Batteries
Target plate
Soft pouch
Safety instructions
Quick Start with QR code linking
to online manual
3 year warranty
Technical Data
Technical Data
Leica Lino L2 Starter Kit
Leica Lino L2 Professional Kit
Range *
25 m
25 m
Range with Laser Receiver *
80 m
80 m
Levelling Accuracy
± 0.2 mm/m @ 10 m
± 0.2 mm/m @ 10 m
Self-levelling Range
± 4°
± 4°
# of Laser Lines
2
2
Beam direction
vertical, horizontal
vertical, horizontal
Horizontal Line Accuracy
± 0.3 mm/m @ 10 m
± 0.3 mm/m @ 10 m
Vertical Line Accuracy
± 0.3 mm/m @ 10 m
± 0.3 mm/m @ 10 m
Laser Type
635 nm/class 2
635 nm/class 2
Battery Type
AA 3 x 1.5V
Li-Ion rechargeable (or AA 3 x 1.5V)
Operating Time **
up to 13 h (AA)
up to 44 h (Li-Ion)
Protection Class
IP54
IP54
Dimensions
110 x 60 x 100 mm
110 x 60 x 100 mm
Weight with Batteries
500 g
530 g
Tripod Thread
1/4″
1/4″
Scope of Delivery
Leica Lino L2
TWIST 250
Alkaline Battery Tray
Batteries
Target Plate
Soft Pouch
Leica Lino L2
TWIST 250
Li-Ion Battery Pack
Charger
Alkaline Battery Tray
Target Plate
Hard Case
* depending on lighting conditions
** depending on laser mode
