Description
Description:

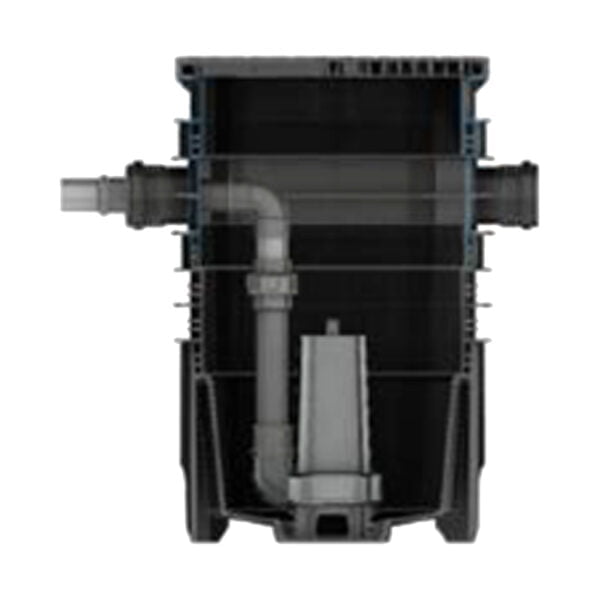

Used for drainage and rainwater lifitng from basements and garages, where the drainage level is below the level of the public infrastructure lines.
Equipped with a Pedrollo Submersible Pump
H.P.: 1inch
Max flow rate: 500ltr/min
Depth of 8.5m
Allows solid objects to pass with max of 5cm
Pump is equipped with a sharp blade made of stainless steel 304
Pump body is Cast Iron and Stainless Steel 304
Include Back Water Valve
The Chamber Body:
Internal Diamater: 548mm
Material: Purest materials of polypropylene
Height: Adjustable height with vertical extension
Main Features:
Self cleaning which prevents the deposition of impurities in it
High temperature resistance
Excellent Chemical-Resistance to all sewage fluids
Inlets:
One socket-pipe inlet diameter 110mm with O ring seal made of natural rubber suitable for drainage applications
Cover:
Size: 60 x 60cm
Material: Made of Polypropelene PP
Load Class: (a15) tested under 1.5 Tons load
Outlets:
One 60mm PVC outlet
