Description
Key Features

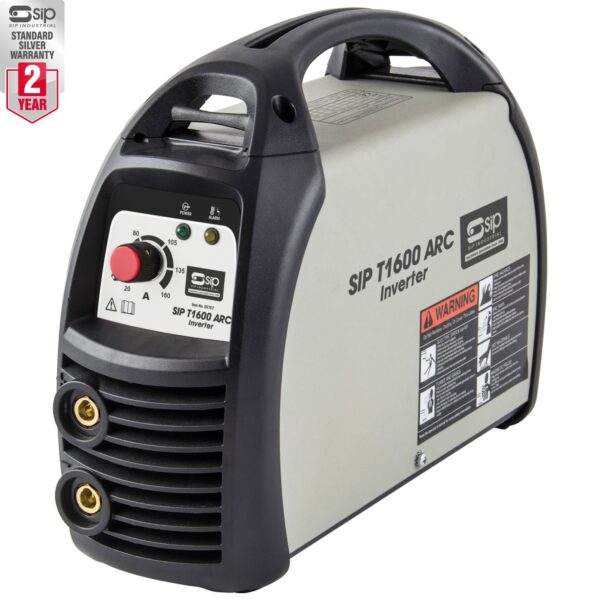

The SIP T1600 ARC/TIG Inverter Welder is a powerful multi-functional inverter with a lightweight, compact design for portability, and is generator-friendly meaning it is ideal for a variety of applications and environments without mains electricity supplies.
20A to 160A output current; 160A @ 20% duty cycle
Scratch-TIG start function and anti-stick circuitry
On-demand cooling for longer runtimes and performance
Generator-friendly for suitability in all environments
Thermal overload protection for added safety
Product Overview
The SIP T1600 ARC/TIG Inverter Welder is a powerful multi-functional inverter with a lightweight, compact design for portability, and is generator-friendly meaning it is ideal for a variety of applications and environments without mains electricity supplies.
Supplied with electrode holder and cable, plus Earth cable and clamp accessories.
Ø 1.6mm to Ø 4mm electrode diameter
20A to 160A output current; 160A @ 20% duty cycle
Lightweight and compact design for simple portability
Scratch-TIG start function and anti-stick circuitry
On-demand cooling for longer runtimes and performance
Generator-friendly for suitability in all environments
Thermal overload protection for added safety
Equipped with high-quality dinse sockets
SIP 2-Year Standard Silver Warranty
Technical Information
ITEM NO.
05707
Input Supply:
230v (16A)
Output Current:
20A – 160A
Output Voltage:
20.8v – 26.4v
Duty Cycle:
160A @ 20%
92A @ 60%
71A @ 100%
Electrode Diameter:
Ø 1.6mm – 4mm
Welding Thickness:
1.5mm – 8mm
Open Circuit Voltage:
68v
Power Factor:
0.65
Efficiency Level:
85%
Protection Level:
IP21S
Insulation Class:
Class H
Net Weight:
3.61kg
Gross Weight:
3.80kg
Product Dimensions:
Packaged Dimensions:
310(H) x 410(W) x 210mm(D)
